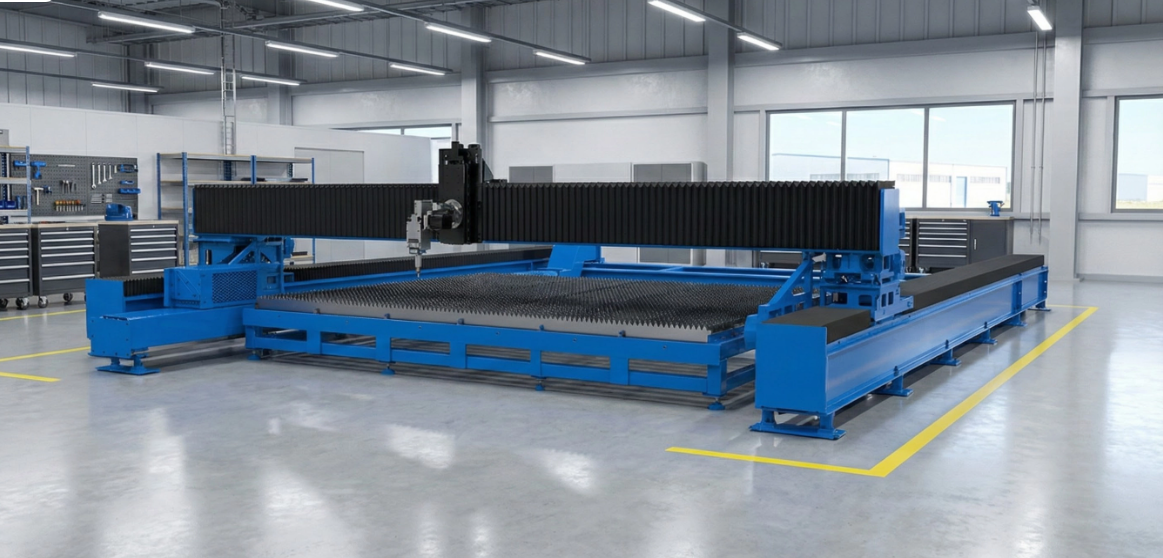

CUTTING MACHINE FOR LARGE-FORMAT

Up to 60KW Power

60kW ultro-hign-power laser erdbles fost, clean cutting of thick plates upto 5Omm whie dramotically occeleroting medum and

thin sheet processing.It conso idates ful thickiness capaolity into one mochine-boosting oroductivity,flexibilow, ond cost efficiency.

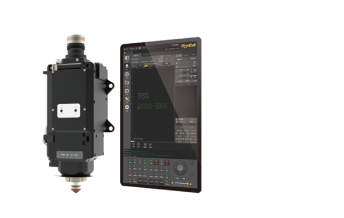

Drive System and Controller

Drive System and controller support Beckhoff soulation and Bochusoulation. Adaptable to various application scenarios and

 fuly compatiblewith Lontek-greater flexibility, higher efficiency

Flexible Large Format

The flexible moduilor design allows customizoble machine dimensionsto easily accommodote ultra-larae cutting areas. while

 its seamentedlinear rall layout significantly enhances beam rigldity and motionaccuracy-effectively minimizing vibration and

 deformation duringhiah-speed operotionIts modular architecture simplifies installation, commissioning, andmaintenance,

making it especially well-suited for large-format,high-power laser cutting systems

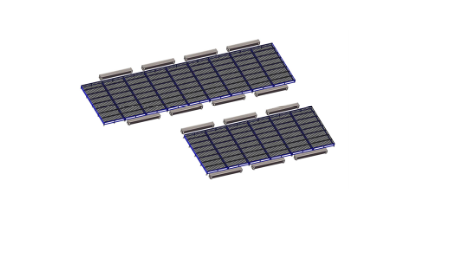

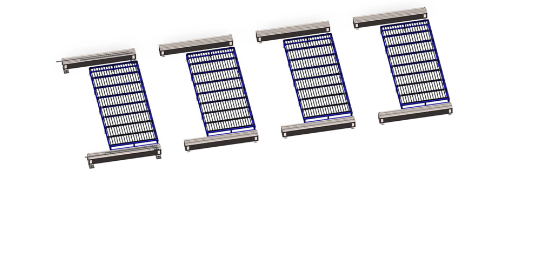

Flexible Worktable

The modulor worktable enables flexible customization and quick scakability,easily accommodating ultra-large formats and

 diverse sheet materials.With reploceable sections, efficient chip removal, and adoptable supportconfigurations, it

significantly enhances mochine uptime and productionflexibility

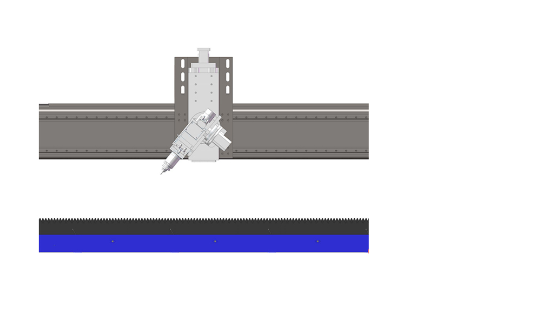

0-45° Bevel Cutting(Optional)

The machine directly cuts welding bevels (such as V, Y, X, and K types) on sheetedges at angles from 0° to 45°, producing

 high-precision joint profiles in a singlepass-eliminating secondary operations like milling or grinding and significantlyboosting

efficiency.

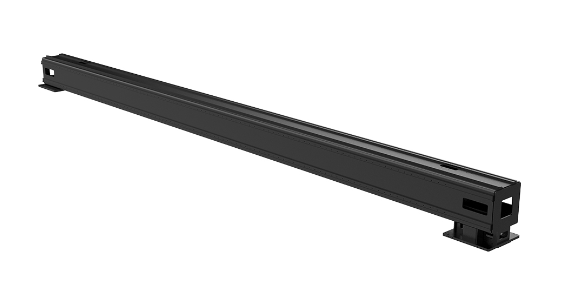

Long-span Cutting Bridge

Up to 6m beam enables efficient, one-time cutting of ultra-large sheets,meetingthe demands of large-scale components in

 industries like steelstructures and shipbuilding.Its high-rigidity design effectively minimizes deflection and vibration,

ensuringconsistent precision and stable performance across the entire travel range.
