WaterCooling Fiber Laser Welding Machine Air Cooling Fiber Laser Welding System 1500W/2000W/3000W
Product Description:
The handheld fiber laser welding machine is a new generation of laser welding equipment. It is a non-contact welding and does not require pressure during the operation. Its working principle is to directly irradiate a high-energy intensity laser beam onto the surface of the material, and through the interaction between the laser and the material , causing the material to melt internally, then cool and crystallize to form a weld. The handheld fiber laser welding machine fills the gap of handheld welding in the laser equipment industry and subverts the working mode of the traditional laser welding machine. The handheld fiber laser welding machine replaces the previous fixed optical path. It is flexible and convenient, and the welding distance is long. It also makes the outdoor operation of laser welding easier. It is mainly aimed at laser welding of long-distance and large workpieces to overcome the limitations of the workbench travel space. The heat-affected area during welding is small, which will not cause work deformation, blackening, or traces on the back, and the welding depth is large. The welding is firm and the melting is sufficient. It can not only realize thermal conduction welding, but also continuous deep penetration welding, spot welding, butt welding, overlap welding, seal welding, seam welding, etc. Hand-held welding subverts the working mode of the traditional laser welding machine. It has the advantages of simple operation, beautiful welds, fast welding speed, and no consumables. It can weld thin stainless steel plates, iron plates, galvanized plates and other metal materials. Perfectly replaces traditional argon arc welding, stainless steel plate, iron plate, aluminum plate and other metal materials welding.
1. Overview Advantage
Advantage | Description |
---|---|
Higher Heat Dissipation Efficiency | Suitable for thicker materials due to their ability to absorb and dissipate more heat, especially with higher-power laser equipment. |
Reduced Heat Input and Minimal Deformation | Minimizes heat input to the necessary amount, reducing metallographic changes and deformation in the heat-affected zone. |
Quality of Laser Beam and Fast Welding Speed | High laser beam quality leading to fast welding speeds and aesthetically pleasing, firm welding seams. |
Improvement in Process Defects | Addresses common welding defects like undercut, under-welding, dense pores, and cracks found in traditional welding. |
Flexibility and Outdoor Operation | Easy to learn and operate, offers multi-dimensional welding without positional or fixture constraints, suitable for outdoor use. |
Model No. | U1500 | U2000 | U3000 |
Laser Power Supply | 1500W(100% Real Power) | 2000W(100% Real Power) | 3000W(100% Real Power) |
Welding Penetration Max. | Carbon steel: 2.8mm Stainless steel: 3.6mmAluminum: 1.0mm | Carbon steel: 3.6mm Stainless steel: 4.6mmAluminum: 2.0mm | Carbon steel: 4.8mm Stainless steel: 6.9mmAluminum: 2.0mm |
Operating Model | Continuous / Modulation | ||
Power Adjustment Range | 10%-100% | ||
Output Central Wavalength | 1080 ±10nm | ||
Cooling Method | Water cooling | ||
Duty Cycle | 100% | ||
Welding Line Requirements | <0.5mm | ||
Rated Power | 220士 20% V AC、50/60H | 220士 20% V AC、50/60H | 380士 20% V AC、50/60Hz |
Gross Weight | 155KG | 175KG | 195KG |

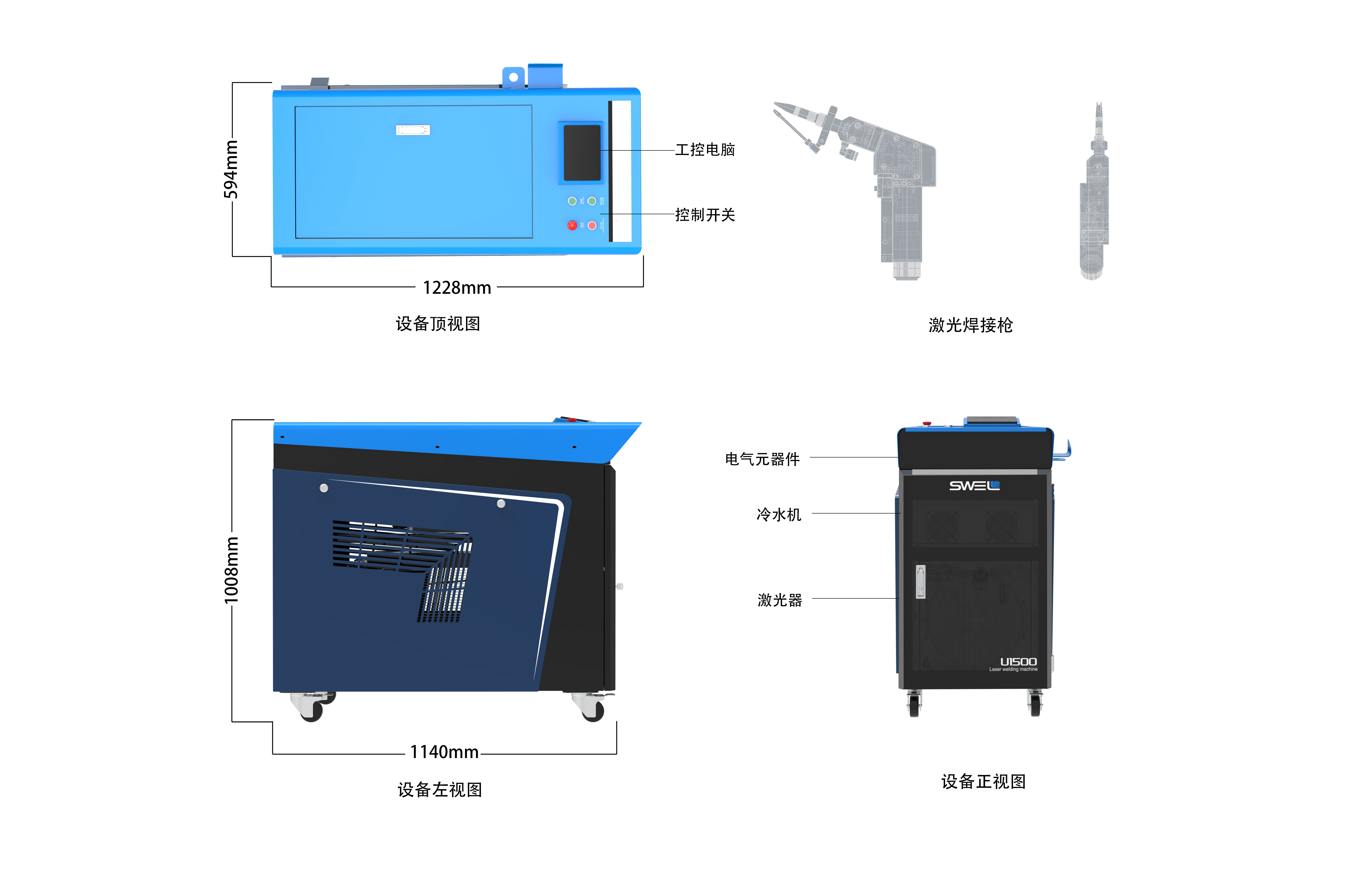

Machine Dimension(L*W*H) | 1228*594*1080mm | 1228*594*1080mm | 1228*594*1080mm |
Material | Power Rate | Welding Max. Penetration | Welding Max.Thickness |
Carbon Steel | 1500W | 2.8mm | 4.0mm |
2000W | 3.6mm | 5.0mm | |
3000W | 4.8mm | 8.0mm | |
Stainless Steel | 1500W | 3.6mm | 4.0mm |
2000W | 4.6mm | 5.0mm | |
3000W | 6.9mm | 8.0mm | |
Pure Aluminium | 1500W | 1.0mm | 2.0mm |
2000W | 2.0mm | 3.0mm | |
3000W | 2.0mm | 6.0mm | |
Copper | 1500W | 0.2mm | 1.0mm |
2000W | 0.3mm | 1.5mm | |
3000W | 1.0mm | 2.0mm |
3.Welding Quality
4.Vedio
